If an Ethernet connection doesn’t work even though everything looks fine, the cable type is often the reason. No lights, no network, just confusion. That’s where understanding an Ethernet crossover cable actually matters. It’s not something you use every day, but when you need it, using the wrong cable wastes time fast. By the end of this, you’ll understand what it is, how it works, and when it actually makes a difference so you don’t guess next time.
What Is an Ethernet Crossover Cable?

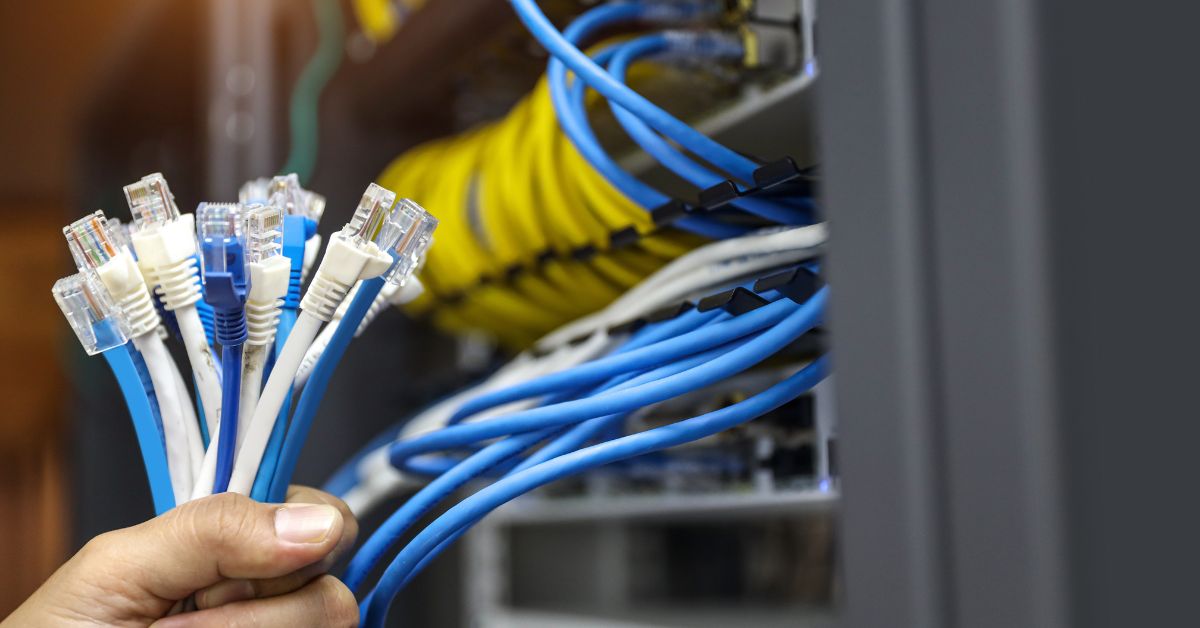

An Ethernet crossover cable looks like a normal Ethernet cable, but it’s wired differently inside. That difference changes how devices talk to each other.
Here’s the simple idea. Devices send and receive data through specific wires. In a regular cable, those wires go straight through, meaning one device sends data and the other expects to receive it on a matching line. That works fine when you connect a computer to a router.
A crossover cable flips those wires. It swaps the send and receive lines so two similar devices can talk directly.
Think of it like two people trying to talk on walkie-talkies set to “talk-only” mode. No one hears anything. The crossover cable flips one side to “listen,” so communication actually happens.
How It Works in Real Life
Here’s what that looks like in practice.
If you connect a laptop directly to another laptop using a standard cable, both devices try to send data the same way. They don’t “hear” each other. That’s where the ethernet crossover cable explained idea clicks. It swaps the wiring so each device receives what the other sends.
A real example: older office setups sometimes connected two switches directly without a router in between. Without a crossover cable, the connection failed. With one, it worked instantly.
Modern devices are smarter now. Many support Auto MDI-X, which detects the wiring and adjusts automatically. That means most of the time, you can use a regular cable and it just works.
You don’t need the electrical details. What matters is this: the cable changes how signals line up between devices.
Ethernet Crossover Cable vs Straight Cable
Here’s where most confusion comes from: the difference between a crossover and a standard Ethernet cable.
| Feature | Straight-Through Cable | Ethernet Crossover Cable |
|---|---|---|
| Wiring | Same on both ends | Send/receive wires swapped |
| Common use | PC to router/switch | Device to device directly |
| Compatibility | Works with most modern devices | Needed for older hardware |
| Setup difficulty | Plug and play | Only needed in specific cases |
If you’re thinking about crossover vs straight-through cable, here’s the practical takeaway: today, straight-through cables handle almost everything. Crossover cables only show up in edge cases.
One detail most people miss: even when Auto MDI-X exists, not all devices support it properly. Some older switches and embedded systems still require a crossover cable. That’s rare, but when it happens, nothing else fixes it.
When Do You Actually Need a Crossover Cable?
This is the part people care about. Not theory. Just when it matters.
You might need a crossover cable when connecting two similar devices directly, like two computers, two switches, or two routers without an intermediate device.
For example, if you’re transferring files between two old PCs without a network switch, a crossover cable can create a direct link. Same idea if you’re configuring network hardware in isolation.
That said, most modern setups don’t require it anymore. Devices made in the last decade usually auto-adjust. That’s why many people go years without ever seeing one.
Pro tip: If a direct Ethernet connection between two devices doesn’t work, and both are older models, try a crossover cable before assuming something is broken.
Another subtle case: some industrial or embedded systems still rely on fixed wiring expectations. In those environments, knowing ethernet crossover cable uses can save time during setup.
Why It Works This Way
This happens because early Ethernet devices expected fixed signal roles.
Devices were built with fixed roles. Some were meant to send on certain wires, others to receive on those same wires. When you connected two devices with the same role, the signals didn’t align.
The crossover cable fixes that by swapping the wires internally.
Before around 2010, this mattered a lot more. You had to choose the right cable depending on what you connected. Modern hardware reduced this friction with Auto MDI-X, which automatically flips signals when needed.
Still, the underlying logic hasn’t changed. The cable is solving a mismatch in how devices expect to communicate.
Common Myths About Ethernet Crossover Cables
Some people think crossover cables are “faster.” They’re not. Speed depends on cable category like Cat5e or Cat6, not whether it’s crossover or straight.
Another misconception is that you always need one for direct connections. That used to be true, but modern devices often handle it automatically.
There’s also the idea that crossover cables are outdated and useless. Not quite. They’re uncommon, but still relevant in specific setups, especially with older or specialized hardware.
Why Should You Care?
You don’t need to memorize wiring diagrams. You just need to recognize when something simple isn’t working.
Understanding when to use crossover cable helps you troubleshoot faster. Instead of assuming a device is broken, you check whether the connection type is wrong.
This also saves time when setting up networks manually or working with older equipment. If you’ve ever plugged two devices together and got nothing, this is often the missing piece.
To build on this, understanding how your network behaves pairs well with basic troubleshooting skills, like checking IP addresses or connection status.
FAQ
Do modern devices still need a crossover cable?
Most don’t. Modern routers, switches, and computers support Auto MDI-X, which adjusts automatically. However, older devices or certain embedded systems still require a crossover cable for direct connections, especially when connecting similar devices.
How can I tell if a cable is crossover or straight-through?
You can look at the wire colors inside the connectors. If both ends match, it’s straight-through. If the order is different, it’s a crossover cable. In practice, most people don’t check this manually unless troubleshooting.
Can using the wrong cable damage my devices?
No, it won’t cause damage. The connection simply won’t work. That’s why this issue is confusing. Everything looks fine physically, but no data flows because the signals don’t align.
Conclusion
An Ethernet crossover cable isn’t something you use every day, but it solves a very specific problem. It lets similar devices communicate directly when standard wiring fails. Once you understand that, troubleshooting becomes faster and less frustrating.
If a direct connection doesn’t work, you now know exactly what to check next.
